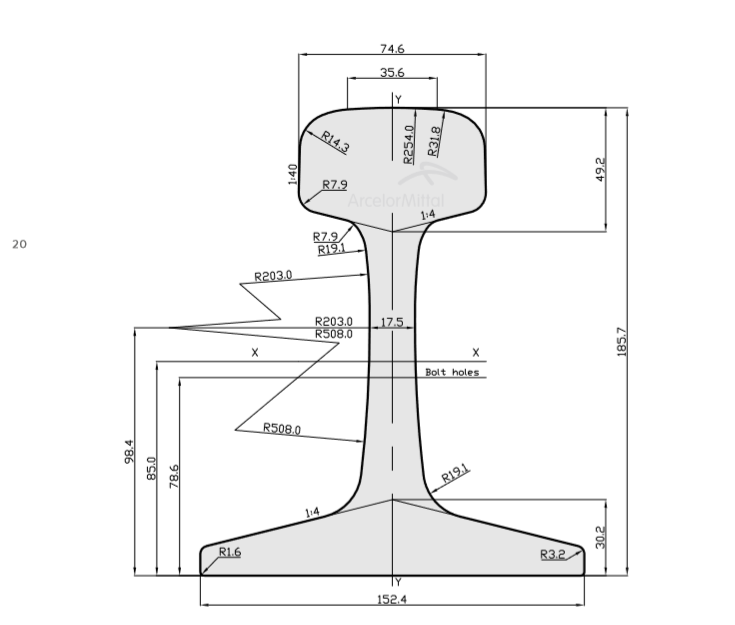

Profile AS68 rail:
Description:
Rail modelo D1 (AS68) manufactured according Australian standard AS 1085.1, mass 67,50 kg per meter.
Dimensions:
| Profile | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| Australian standard | ||||||||
| D1 (AS68) | AS 1085. 1 | 185,70 | 152,40 | 74,40 | 49,20 | 17,50 | 86,02 | 67,50 |
